OMNIMATE® Signal device connectivity

A reliable device connection is an absolute must for your customised applications. Weidmüller‘s OMNIMATE® Signal includes PCB terminals and PCB connectors for devices used in automation and control (measurement, control and feedback control systems) – in particular for sensor actuator interfaces and power supplies.

You can choose from a product range that includes extremely compact PCB terminals and connectors, which, thanks to intelligent locking concepts and high-performance connection systems, provides your design-in process with a wide range of application-specific solutions and does not set any limits on your creativity. We have also not forgotten about your production processes when formulating our product range, as our THR and SMD components ensure the highest productivity levels during the reflow soldering process.

OMNIMATE® signal connectors for the PCB

The pluggable PCB connection is an established standard in process and manufacturing automation as well as in measurement and control technology.

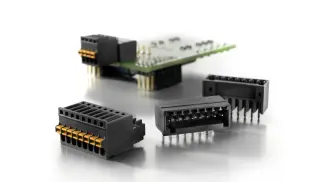

  • Compact at 2.50 mm pitch, 46 connections at 3.50 mm pitch
  • Highest level of power reserves at 3.81 mm pitch and largest application area at 5.08 mm pitch
  • Multi-row and multi-layer designs up to 48-pole

OMNIMATE® Signal Board-to-Board solutions

The use of future-proof contact systems, as well as the optimisation of manufacturing processes, are increasingly important in the development of efficient industrial devices, especially in the field of Industry 4.0. OMNIMATE® Signal Board-to-Board connectors feature a 1.27 mm pitch and offer maximum flexibility due to different designs.

  • Industrial suitable density combined with high flexible connection combinations (mezzanine, mother-to-daughter, board-to-board)
  • Reliable contact - Up to 500 mating cycles due to industry suitable gold-surface (PdNi-Au)
  • Process-Ready - High performance LCP material for reflow soldering

Assembled cable Produkt innovation

The proven connector range for OMNIMATE® Signal Board-to-Board solutions supplemented with assembled cables. This means even far away interfaces inside the device can now be connected particularly quickly and flexibly.

Assembled cable
Your advantages
  • Robust design due to coordinated contact geometries and latching clip
  • Two cables types (PVC and TPE) for different operating temperatures (–40 °C to +125 °C)
  • Universal device design due to different connector types and stack heights

OMNIMATE® Signal PCB terminals

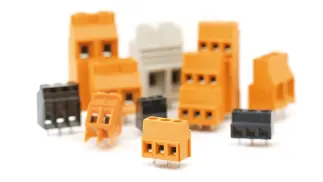

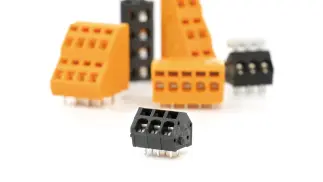

The universal and direct PCB connection for industrial electronics. From clamping yoke screw connections to PUSH IN spring connections in all relevant cross-section ranges up to 6 mm².

  • Universally usable in all common pitch dimensions from 3.50 mm to 7.62 mm
  • Wide range of reflow-compatible products for automated SMT and SMD processes
  • Compact, multi-layer designs up to 72-pole

LMFV PCB terminals in twin design Produkt innovation

The new OMNIMATE® Signal LMFV PCB terminal blocks enable a particularly fast and safe device connection. Their layout is identical to the proven LM product family with clamping yoke connection. This gives device engineers the choice between the classic clamping yoke connection and the innovative PUSH IN connection. The LMFV PCB terminals have been optimised for wave soldering processes.

LMFV PCB terminals in twin design
Your advantages
  • Flexible selection of the connection technology to achieve particularly precise solutions
  • For standard connections with 5.00 mm pitch and also suitable for higher voltages up to 500 volts with 7.50 mm pitch.
  • Layout and design compatibility with OMNIMATE® LM PCB terminal blocks with clamping yoke connection technology

OMNIMATE® Handling videos

OMNIMATE® Handling videos

This is a YouTube video. By clicking on this video, you agree to Google/YouTube's Privacy Policy & Terms of Use . You also agree to our Privacy Policy.

Did you know? You can find a range of useful handling videos about our products, as well as exciting company insights on our YouTube channel. Have a look and subscribe to our channel today!

OMNIMATE® Services

With our OMNIMATE® services, we can help you and your business achieve the highest possible levels of efficiency. You can reduce your product costs and benefit from our support across all phases of your project. Save valuable time with an application or product-oriented search using our ConnectorGuide and make a quick selection with our web configuration tool.

Feel free to contact our experts for more information on our PCB connectors or if anything is unclear. Simply use the services of our support centre. We’ll help you identify the ideal solution for your needs. Are you unsure about how to properly mount our PCB connectors and PCB terminals? If so, as well as contacting our customer support team, you can also watch one of our handling videos . You can find these in our online product catalogue or by scanning the QR code on the product itself.

Service offer of signal connectors and terminals

ConnectorGuide: Find the right product for your needs

Through the ConnectorGuide we provide you with an application and product-oriented search that will quickly guide you to the product you need. Finding the right signal connectors for the PCB has never been easier.

Resource collection

In our white papers you will find answers to topics that occupy the equipment manufacturers' industry. Find out how to measure clearances and creepage distances accurately, learn about the different conductor connection techniques or watch our handling videos.

Free-of-charge 72-hour sample service

With our free 72-hour OMNIMATE® sample service, you have the opportunity to order your design-in samples quickly and easily from our product catalogue. Within 72 hours, we deliver your samples of signal connectors for the PCB to the location of your choice.

Digital data

We offer extensive component libraries of OMNIMATE® PCB connectors and terminals for EDA systems. We can also support you in the creation, modification, analysis or optimisation of your design using CAD and 3D data. Weidmüller provides you with full product data in BMEcat format including engineering data

OMNIMATE® signal connector for the PCB in applications

Downloads on the subject of signal connectors & terminals

We provide you with information on our OMNIMATE® components for signal connection for download. Download our quick reference guide or product catalogue to find exactly the PCB signal connectors and terminals you need.

Perfect complements for signal connectors & terminals for the PCB

Consulting & Support

Whether you come to us as a device developer, product manager or buyer, we promise you efficiency, speed and tailored solutions. Weidmüller is your perfect partner for PCB connectors and PCB terminals. You can rely on our expertise and know-how. Working with you, we’ll find the products that meet your requirements.
